Transformers Solutions for Industrial and Commercial Buildings

Daelim Transformer Solutions for Industrial and Commercial Buildings

At Daelim Transformer, we supply a range of transformers, it can ensure safe, reliable, and efficient power distribution to suit the specific needs of each Industrial and Commercial Buildings project. Daelim transformer solutions are capable of handling a wide range of voltage levels from low to high and can be customized for specific applications. This versatility makes it ideal for a variety of industrial and commercial environments, such as factories, office buildings, and retail complexes.

Contact Daelim Transformer

Daelim's transformers are equipped with advanced technology and design, enabling to reduce power loss and improve efficiency. Using us for power requirements is an excellent choice, because it results in lower energy costs and a reduced environmental impact. However, the effectiveness of a transformer solution depends not only on the hardware but also on the engineering and support provided. DAELIM has a team of experienced professionals, provide comprehensive support and consultation services , throughout the design, installation, and maintenance phases of the project. The expertise of our team helps customers in selecting the appropriate transformers, enhance their performance, and resolve any issues that may come up.

Daelim Transformer

Transformers for industrial and commercial buildings

Distribution Transformers

Distribution Transformers

It goes without saying that distribution transformers are at the heart of the power system, stepping down the high voltage from the utility grid to a certain voltage level, for example for buildings and other facilities.Transformers are designed to provide a steady flow of electricity to a building's electrical system , and are usually located outside the building.

It uses a set of coils to convert electrical energy through electromagnetic induction. To generate electricity for buildings, high-voltage coils are wound around iron cores, it create a magnetic field. This then induces a voltage in the building's low-voltage coils. The amount of voltage generated is determined by the number of turns of the high and low voltage coils. The more turns, the greater the voltage will be if the current passing through is constant.

Power ratings can vary from a few KVA to hundreds of KVA. These capacities are reliable and efficient, and then requiring little maintenance. Today includes safety features, such as overload, short circuit and surge protection.

Power Transformers

Transformers have many uses, such as powering manufacturing equipment, large electric motors, and heavy machinery. These transformers are much larger and more powerful than distribution transformers, and some models can weigh several tons, indicating that they can handle power outputs of up to several megawatts. Plus, they're designed to withstand high pressure and are made with high-quality materials to ensure their durability and reliability for years of use.

Finally, industrial equipment transformers are classified according to their usage and design. Step-up transformers are used to increase the voltage to meet equipment requirements, and step-down transformers are used in the same way. The exception is that isolation transformers are used to separate electrical equipment from the mains power supply to prevent interference or problems.

Power transformers are important. Because maintaining the stability and security of the grid. They do more than just convert power. They also regulate voltage levels, manage power flow, and improve grid reliability. By doing so, they help prevent blackouts and other power disruptions.

Power Transformers

DAELIM Solutions For Industrial and Commercial Building

Daelim Project Transformer For Commercial Building

Daelim Project Transformer For Commercial Building

Site: Minnesota, USA

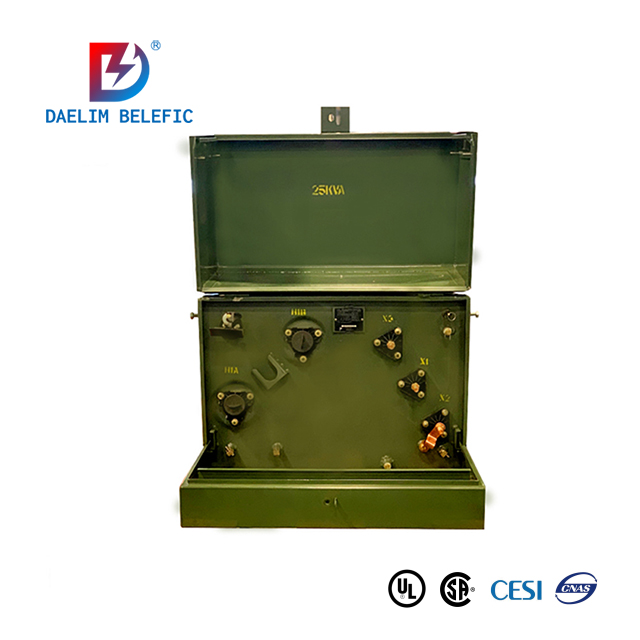

Transformer Type: Single-phase pad-mounted transformer

Quantity: 40 Units          Certificate: UL

Specification:

Single phase, 60 Hz, 12470/7200-120V, mineral oil fluid, pad-mounted compartment type, dead front transformers, rated 25kVA through 250 kVA at 65 ° C temperature rise above ambient, Transformers shall be loop feed, Type ll (low profile), 125 kV BlL All transformers designed, built, tested, and furnished.

All materials utilized should belong to the 65°C (80°C Hot Spot) Class and undergo comprehensive testing to ensure they are compatible with all transformer components. All transformers shall be OA-type self-cooled and comply with IEEE C57.12.26 and C57.12.38 requirements.

Learn more about Pad Mounted Transformer

The coils of the transformer should be designed to maintain their nominal kVA rating even when exposed to different temperatures. The constant kVA rating will be determined by an average temperature rise of 65°C in the winding, following lEEE C57.12.00 standards. Primary bushings and parking spaces shall be provided for forward feed loop transformers by ANSI C57.12.25. The low voltage section shall include three fully insulated secondary bushings for connecting secondary windings for series operation.

Send Inquiry Now

Daelim Project Transformer For Industrial

Site: Vancouver, Canada
Transformer Type: Power transformer
Quantity: 2 Units
Standards: IEEE C57, IEEE C57.12.00, IEEE C57.12.28, IEEE C57.12.36, IEEE C57.12.70, IEEE C57.12.90, IEEE C57.154, CSA C88

TECHNICAL DATA
RATING 12000kVA
PRIMARY VOLTAGE 66000V
SECONDARY VOLTAGE 12470Y/7200V
FREQUENCY 60Hz
VECTOR GROUP Dyn1
WINDING MATERIAL COPPER
LOAD LOSS AT RATED VOLTAGE 58000W
NO LOAD LOSSES 12000W
IMPEDANCE(ONAN) 6.50%
ALTITUDE <1000m
No.OF TAP POSITION 5
COLOR Gray 70
Daelim Project Transformer For Industrial

Transformers in industrial and commercial building

To meet the growing power demands of commercial and industrial buildings, it indicates efficient power distribution systems are essential. Transformers act as voltage-level translators , they are an important part of such systems. Its principle is to change the voltage of electrical energy when current passes through it. For example, when current flows through the primary coil, the voltage is converted by the magnetic field induced in the secondary coil, and the same is true for the secondary coil.

As we all know, the transformer is vital in the power distribution system. Its function is to transfer electrical energy from the high-voltage grid to a lower voltage level, and generally speaking, building systems and equipment require lower voltages. For example, step-up transformers are used to increase the voltage level of equipment, so it is necessary to provide a higher voltage level system than the grid.

Power distribution systems often use isolation transformers, which provide electrical isolation between different circuits or systems, which helps prevent electrical noise or interference in one system from affecting the operation of another system. Isolation transformers are important to improve the reliability of power distribution systems by acting as a barrier and minimizing the effects of electrical noise and interference. At the same time, they serve as an important component in the power distribution system of commercial and industrial buildings. They is a necessary function for the operation of building systems and equipment. Selecting the proper transformer for a specific application is important to ensure optimum electrical performance and efficiency. In conclusion, the reliability of the power distribution system can be maximized through the use of isolation transformers, which are achieved by minimizing electrical noise and interference.

Factors for Selecting Transformers

If power needs to be managed and distributed efficiently, this requires the use of transformers. Proper management is crucial to ensure reliable and consistent performance, similar to other electrical equipment.

A. Efficiency

If something is efficient, it means less energy is wasted in its conversion. This reduces operating costs and reduces environmental impact. Today, many transformers are designed to run at 99% or better efficiency, which can significantly reduce energy consumption and help homeowners save on their electricity bills while reducing their carbon footprint. In power distribution systems, They are important including in regulating voltage and transmitting power through electromagnetic induction. Using high-efficiency transformers can help reduce energy waste, improve voltage regulation, and increase system reliability.

B. Appropriate size and type

Transformers can be custom-made, so there are many sizes and types, and each specific type has characteristics that affect its efficiency and suitability, so this is a factor to consider. Factors such as load characteristics, harmonic content, and ambient temperature, all affect transformer performance. The size of the transformer should be carefully matched to the expected load to ensure it operates at near-optimum efficiency. Transformers that are too small, can become overburdened and result in reduced efficiency, while those that are too large tend to operate inefficiently and waste energy.

C.Regular maintenance

By conducting routine inspections, potential problems can be identified early, which helps prevent costly breakdowns and reduces downtime. Typical maintenance procedures include oil testing, insulation inspections, and terminal cleaning. Oil testing can identify potential problems with insulation or insulation degradation, while insulation inspection can detect physical damage or contamination. Terminal cleaning ensures good electrical contact between the transformer and associated components, reducing the risk of cracking or corrosion.

Taking care of and choosing the right transformers can lead to significant energy efficiency benefits. Increasing transformer efficiency can help reduce energy wastage and costs, resulting in both financial savings and a more positive impact on the environment. To save energy, consider replacing old and inefficient transformers with newer and more efficient models. Upgrades like this can have a significant impact on a facility's energy consumption, making them more sustainable and cost-effective in the long run.

Daelim Transformer is a company with extensive experience in transformers in Industrial and Commercial Building projects. Their expertise spans various regions, including North America, South America, Europe, and Australia. If you are in need of their services or have any inquiries, you can confidently contact Daelim Transformer knowing that they have a wealth of experience to offer.
