A Comprehensive Guide to Transformer Specifications

small substation transformerDaelim Transformer is a leading manufacturer of professional electrical transformers that meet the highest industry standards, including IEEE, ANSI, CSA, and IEC. We offer a wide range of transformer specifications to cater to the unique requirements of Daelim customers.



Whether you need a power transformer, distribution transformer, or special transformer for a specific application, we have the technical expertise and state-of-the-art manufacturing capabilities to deliver the transformer you need. Daelim transformers are built using only the highest-quality materials and components, ensuring that they meet or exceed all applicable international standards.

Table of contents
1. Pole Mounted Transformer Specifications
2. Pad Mounted Transformers Specifications
3. Small Substation Transformers Specification
4. Solar Transformer Specification
5. 50 kVA transformer specifications 6. 100 kVA transformer specification 7. 150 kVA transformer specification 8. 200 kVA transformer specification 9. 250 kVA transformer specification 10. 315 kVA transformer specification
11. 400 kVA transformer specification
12. 500 kVA transformer specifications 13. 630 kVA transformer specifications
14. 750 kVA transformer specifications 15. 1000 kVA transformer specification 16. 1250 kVA transformer specification
17. 1500 kVA transformer specification 18. 1600 kVA transformer specifications
19. 2000 kVA transformer specification 20. 2500 kVA transformer specifications 21. 10 MVA transformer specification 22. 20 MVA transformer specification
23. 25 MVA transformer specifications
24. 40 MVA transformer specification
25. 50 MVA transformer specification
26. 100 MVA transformer specification
27. 11kv transformer specification
28. 33kv transformer specifications

Pole Mounted Transformer Specifications

single phase pole mounted transformerPole mounted transformers are a key product in Daelim factory, featuring a comprehensive standard specification that covers important details such as the supplier, model, country of origin, manufacturing and testing standards, key features, core materials, losses, high and low-voltage electrical characteristics, short circuit capability, impedance, tank design, dimensions, and weight, accessories, testing, and warranty.



As a reliable supplier, DAELIM offers the D model with customizable capacity and primary and secondary voltage options. Daelim pole mounted transformers are manufactured to meet industry standards such as IEEE Std, CSA Std, and IEC Std.



Customers can select from a range of features to suit their specific needs, including rated power (ranging from 15kVA to 333kVA), primary and secondary voltage, and winding temperature rise. Daelim transformers have a maximum voltage of 34.5kV, with winding temperatures kept below 65°C, hottest-spot winding temperatures under 80°C and oil top temperatures under 65°C. Losses in no load and on load conditions are dependent on the transformer's capacity, with a tolerance of ±10% for single loss and ±6% for total loss.



Daelim offers both mineral oil and vegetable oil cooling options and uses an A(105°C) insulation system. Customers can choose from aluminum or copper winding materials and silicon or stainless steel core materials. The tank color is customizable, and Daelim only uses PCB-free oils. Daelim transformers operate within a wide temperature range of -50°C to +40°C, making them suitable for a variety of project sites.



The accessories included with Daelim transformers are extensive and include cooper strips, core and coil assembly, fastening ring or cover clamp, grounding bar, HV and LV bushings, nameplate, pressure relief device, sealing ring, tank cover, and tap changer. Daelim also accommodates specific accessory requests from customers, all of which are detailed in the spec sheet.



Lastly, Daelim transformers come with a 2-year warranty, providing customers with peace of mind and assurance in the quality of DB transformers.

Learn more: How to buy an electric pole transformer-Daelim?



Pad Mounted Transformers Specifications

Daelim specializes in pad mounted transfpad mounted transformerormers that adhere to ANSI/IEEE, and CSA standards with UL/cUL certificates, and are widely used by renowned companies such as EATON, SOLOMON, and AMAZON. Daelim pad mounted transformers are available in single phase and three phase options, and are UL and cUL listed for quality assurance.



The specification of Daelim pad-mounted transformers includes the following details: supplier (Beijing Daelim), model (ZGD/ZGS H or Z with added capacity, primary and secondary voltage), where H denotes loop feed and Z signifies radial feed, country of origin (CHINA), standard manufacturing and testing (IEEE/CSA), type (loop type and radial type), and installation (outdoor). Altitude above sea level and ambient temperature is specified as 1000m and 50°C respectively, with a maximum altitude of 1500m.

Try for free: 2500 kVA Pad Mounted Transformer

Rated power, high and low voltage are customized based on customer requirements, and frequency varies depending on the country of installation (50Hz or 60Hz). Cooling system options include oil type with choices of mineral oil or vegetable oil, and customers can also request a cooling fan. The number of windings is typically 2, with the option for single phase or three phase configurations. Daelim pad-mounted transformers are all core type, as opposed to shell type.



Winding material options include aluminum or copper, with copper being more conductive but also more expensive. The working temperature range is from -25°C to +40°C, depending on the project location. The top oil temperature rise is limited to 65°C, while the winding temperature rise is also 65°C and the hot spot temperature is 80°C.



Losses are specified as no load losses at rated voltage and rated frequency on the principal tap, as well as load loss at rated voltage. The vector group, such as Dyn and Ynyn connection symbols, is determined based on customer requirements, and the core legs are decided accordingly (3 for one side ground connection, and 5 for both side ground connection). Tap changer options include on-load tap changer and off circuit tap changer.



High voltage and low voltage electrical characteristics of transformers and assembled load break terminals are in compliance with customer-specified standards. Customers can choose the material and color of the tank, with options of silicon steel or stainless steel for material, and ANSI gray or Munsell green for color. Dimensions and weight of the transformers depend on the capacities, with larger capacities generally resulting in bigger size and heavier weight for the same type of transformer.



Standard accessories provided by Daelim include lifting lugs, hinged door, parking stand bracket, pressure relief valve, drain valve, nameplate, thermometer, oil level gauge, load break switch, flat padlock door, HV and LV bushings, and others as required by customers.

Learn more : 3 Phase Pad Mounted Transformer



Small Substation Transformers Specification

Here are small substation transformer specifications

General background: This includes the supplier (e.g. Beijing Daelim), the model name (including capacity, primary and secondary voltage), and the country of origin (e.g. China).



Environmental characteristics and networks: This includes information about the installation environment, such as whether it will be installed indoors or outdoors, the altitude above sea level, and the ambient temperature. It also includes information about the network, such as the frequency (e.g. 50Hz or 60Hz) and the type of connection (e.g. loop or radial feed).



General characteristics: This includes the rated power, high and low voltage, type (e.g. single phase or three phase), cooling system (e.g. oil type with mineral or vegetable oil), and the number of windings.



Service technical characteristics: This includes information about the working temperature range and the temperature rise of various components (e.g. top oil temperature rise, winding temperature rise, and hot spot temperature).



Technical characteristics: This includes information about the losses of the transformer, such as the no-load losses at rated voltage and frequency on the principal tap, and the load loss at rated voltage. It also includes information about the vector group and the number of core legs.



Oil properties: This includes information about the type of oil used, its properties, and any relevant standards.



Dimension and weight: This includes information about the physical size and weight of the transformer, which can vary depending on the capacity and type of transformer.



Test standard: This includes information about the testing standards used to ensure the quality and safety of the transformer, such as IEEE/CSA.



Warranty: This includes information about the length and terms of the warranty offered by the supplier.



Overall, small substation transformers are customized based on the specific needs of the customer, similar to pad-mounted transformers. By considering all of these factors, customers can select a transformer that is optimized for their specific application and environment.

Get it now: Why Substation Transformers Are So Important In Power Systems?



Solar Transformer Specification

solar power transformerSolar power, also known as distributed photovoltaic (DPV) power generation systems, is a renewable energy source that is becoming increasingly popular worldwide. The process of converting solar energy into electrical power is achieved through the use of photovoltaic semiconductors that can convert the sun's rays into direct current (DC) electricity.



In the case of solar farms, the energy produced can reach many megawatts (MW) of power. However, to make the power usable in various scenarios, it must be converted from DC to three-phase AC electricity.

Read more about Solar Transformer

Daelim offers customized solutions for solar farm projects through the use of pad-mounted transformers and substation transformers. These solutions can be tailored to meet specific project requirements, including rated capacities, nominal voltage, winding connection diagram, vector group, and electronic shields.



solar transformerPad-mounted transformers and substation transformers play an important role in the efficient and reliable transmission of solar energy from the generation site to the distribution network. These transformers are responsible for stepping up or stepping down the voltage of the electricity generated, depending on the specific requirements of the transmission and distribution networks.



In addition to the technical specifications, Daelim also offers comprehensive testing and certification of its transformers to ensure compliance with industry standards and regulations. Customers can also benefit from Daelim's warranty and technical support services, ensuring the smooth operation and maintenance of their solar power generation systems.



Daelim has been providing reliable and professional transformer solutions for more than 20 years. Daelim has gained a reputation and trust from Daelim customers in North America and South America and other countries and regions through day-to-day efforts and considerate service to Daelim customers. Daelim makes ideal solutions for solar power, wind power, energy storage, mining industries, cryptocurrency, semiconductors, and utilities, for personal use and for business use. No matter when you need transformer solutions for yDaelim projects, feel to contact us and we are always here to help.

Daelim's Solar Transformer For Solar Photovoltaic System In North America

50 kva pole mounted transformer

50 kVA transformer specifications
50 kVA single phase transformer specification

H.V. L.V. Impedance Energy Efficency VOL.OF OIL Total Weight
13800V 120-240V 2.40% ANSI C57.12 100L 320kg

50 kva pad mounted transformer





50 kVA single phase pad mounted transformer specification

H.V. L.V. Impedance Cooling System VOL.OF OIL Total Weight
12470y/7200 240/120 2.00% ONAN 180kg 560kg

Learn more about the 50 kVA Pad Mounted Transformer

100kva transformer



100 kVA transformer specification

100 kVA single phase transformer specification

H.V. L.V. Impedance Energy Efficiency VOL.OF OIL Total Weight
14400/24940Y*16000/27600Y 347/600Y 2.40% ANSI C57.12 165L 660kg

100kva single phase pad mounted transformer






100 kVA single phase pad mounted transformer specification

H.V. L.V. Impedance Energy Efficiency VOL.OF OIL Total Weight
34500/19920 240/120 2.00% DOE Efficiency Std 255kg 750kg

150 kva pad mounted transformer



150 kVA transformer specification

150 kVA pad mounted transformer specification

H.V. L.V. MANUF.REF.NO. Energy Efficency BIL Cooling Method
14400 600GrdY 347 CSA C227.4-06 99.20% 95/30kV ONAN

200kva pad mounted transformer



200 kVA transformer specification

200 kVA single phase pad mounted transformer specification

H.V. L.V. Impedance Tap Voltages HV VOL.OF OIL Total Weight
13800 380GrdY/220 4.00% ±2x2.5% 500kg 2000kg

250 kva transformer



250 kVA transformer specification

250 single phase transformer specification

H.V. L.V. Impedance Test Standard Insulation Class Cooling Method
24.94kV 0.277kV 3.29% ANSI C57.12.20 A ONAN

250 kVA single phase pad mounted transformer specification

H.V. L.V. Cooling System Working-Temperature BIL Impedance
27/16kV 120/240V KNAN -50°C to +40°C 125/30kV 2.50%

315 kVA transformer specification

H.V. L.V. Impedance Cooling Method VOL.OF OIL Total Weight
11kV 0.4kV 4.00% ONAN 395kg 1390kg

400 kVA transformer specification

H.V. L.V. Impedance Cooling Method VOL.OF OIL Total Weight
11kV 0.416kV 4.00% ONAN 255kg 1350kg

150 kva pad mounted transformer



500 kVA transformer specifications
500 kVA pad mounted transformer specification

H.V. L.V. Cooling System Impedance Standard Temperature Rise
12000 Delta 480Y/277 ONAN 5.75% IEEE C57.12.00 12.90/12.34 65°C

500 kVA power transformer specification

H.V. L.V. VECTOR GROUP  Impedance VOL.OF OIL Total Weight
27.6kV 480GrdY/277V   Dyn1 4.75% 550L 2250kg

630 kVA transformer specifications

H.V. L.V. Cooling System Impedance Standard Temperature Rise
20kV 0.4kV ONAN 5.50% IEC60076 65°C

750kva transformer



750 kVA transformer specifications

750 kVA pad mounted transformer specification

H.V. L.V. Cooling System BIL VOL.OF OIL Total Weight
4160V 480GrdY/277V KNAN 30/60kV 540kg 2800kg

750 kVA skid-mounted transformer specification

H.V. L.V. Cooling System Impedance BIL Total Weight
12.47kV 480Y/277 OA/FA 7.00% 95/30kV 6954kg

1000kva transformer





1000 kVA transformer specification

1000 kVA pad mounted transformer specification

H.V. L.V. Impedance BIL VOL.OF OIL Total Weight
12.47kV 480Y 5.75%% 95/30kV 650kg 3235kg

1000 kva power transfrormer







1000 kVA power transformer specification

H.V. L.V. Cooling System Impedance BIL Total Weight
12kV 480Y/277 OA/FA 5.55% 95/30kV 5790kg

1250 kVA transformer specification

H.V. L.V. Energy Efficency NO LOAD LOSSES ON LOAD LOSSES Total Weight
25kV 0.416kV 99.21% 1950W 13100W 4000kg

1500 kva pad mounted transformer



1500 kVA transformer specification

You may enjoy: Pad Mounted Transformer

1500 kVA pad mounted transformer specification

H.V. L.V. Energy Efficency NO LOAD LOSSES ON LOAD LOSSES Total Weight
25kV 0.416kV 99.21% 1950W 13100W 4000kg

1500 kVA small substation power transformer specification

H.V. L.V. Impedance Standard VOL.OF OIL Total Weight
13.8kV 0.48kV 5.52% CSA C88 and C802.3 1080L 4200kg

1600 kVA transformer specifications

H.V. L.V. Cooling System Impedance No load loss On load loss
11kV 0.208kV ONAN 4-5% 1640W 14500W

2000 kVA transformer specification

2000 kVA pad mounted transformer specification

H.V. L.V. NO LOAD LOSSES ON LOAD LOSSES VOL.OF OIL Total Weight
13.8kV 0.6kV 2230W 18100W 1385L 5000kg

Learn more about 2000kVA Pad Mounted Transformer

2000 kVA small substation transformer specification

H.V. L.V. Impedance Cooling Method VOL.OF OIL Total Weight
13.8kV 480v 7.00% ONAN/ONAF 3150 lbs 13000 lbs

2500 kVA transformer specifications

2500 kVA pad mounted transformer specification

H.V. L.V. Impedance Cooling Method VOL.OF OIL Total Weight
13.8kV 415v-240v 5.70% ONAN 1450L 6300kg

Learn more about 2500 kVA Pad Mounted Transformer

2500 kva power transformer





2500 kVA three phase power transformer specification

H.V. L.V. EFFICIENCY ON LOAD LOSSES VOL.OF OIL Total Weight
24.94kV 480GrdY/277V 99.37% 18100W 1220kg 5450kg

10 MVA transformer specification

10 MVA pad mounted transformer specification

H.V. L.V. VECTOR GROUP  BIL VOL.OF OIL Total Weight
24900GrdY 600V Dyn1 125/30kV 3000L 16000kg

10 mva power transformer





10 MVA power transformer specification

H.V. L.V. VECTOR GROUP  Applied Standard VOL.OF OIL Total Weight
25kV 4.16kV Ynd1 CSA C88-16 2850L 14000kg

20 MVA transformer specification

H.V. L.V. BIL Applied Standard VOL.OF OIL Total Weight
24.9kV 13.8kV 150/95kV IEEE C57.12.00 15980kg 61460kg

Keep reading: 20 MVA Transformer: The Ultimate FAQs Guide

25 MVA transformer specifications

H.V. L.V. BIL Applied Standard VOL.OF OIL Total Weight
132kV 25kV 150/95kV EN 50329/AS 60076 17000kg 51000kg

40 MVA transformer specification

H.V. L.V. Cooling Method Applied Standard Mounting position Total Weight
138kV 24.9kV ONAN/ONAF/ONAF IEEE C57.12.00 Side mount 58000kg

50 MVA transformer specification

H.V. L.V. ON LOAD LOSSES ON LOAD LOSSES VOL.OF OIL Total Weight
34.5kV 13.8kV/7.97kV 30000W 187800W 15000kg 62500kg

100 MVA transformer specification

H.V. L.V. NO LOAD LOSSES ON LOAD LOSSES Impedance Vector-group
115kV 34.5kV 90000W 250000W 12.80% YNd11

Learn more about 100 MVA Transformer

11kv transformer specification

Transformer specification sheet

Rating L.V. NO LOAD LOSSES ON LOAD LOSSES VOL.OF OIL Total Weight
75kVA 240
480
415
480y/277
600Y/347
180W 1250W 120kg 645kg
112.5kVA 200W 1500W 138kg 729kg
150kVA 280W 2200W 201kg 989kg
225kVA 400W 3050W 230kg 1195kg
300kVA 480W 3650W 260kg 1415kg
500kVA 680W 5100W 325kg 1905kg
750kVA 980W 7500W 535kg 2755kg
1000kVA 1150W 10300W 650kg 3235kg
1500kVA 1640W 14500W 748kg 5835kg
2000kVA 2160W 20645W 950kg 6430kg
2500kVA 2680W 27786W 1020kg 8865kg

Read more about 11kV Transfromer

33kv transformer specifications

Rating L.V. NO LOAD LOSSES ON LOAD LOSSES Impedance Total Weight
800kVA 208/120
415/240
480/277
400
600
12000
12470
13200
13800
or others
980W 9350W 2.7%
3.1%
4.35%
5.75%
6%
2050kg
1000kVA 1160W 11500W 2450kg
1250kVA 1380W 13900W 2900kg
1600kVA 1660W 16600W 3400kg
2000kVA 2030W 18300W 4100kg
2500kVA 2450W 19600W 4750kg
3000kVA 3240W 26500W 6500kg
5000kVA 4500W 27000W 9500kg
7500kVA 7200W 32000W 13600kg
10000kVA 8500W 35500W 15800kg

Read more about the 33kV Transformer



If the above transformer specifications cannot meet your needs, please Contact Daelim team.


Related Products


Related Article

12+ FAQ Guide on Transformer Ratings

A power transformer rating is the maximum amount of electricity that it can safely and reliably transform. In most cases, this is always stated in kVA.

The Ultimate Guide to the 750 kVA Transformer

In this post, we will discuss the 750 kVA transformer's basic operation, specifications, necessary amperes, and prices for you to better understand this type of device.

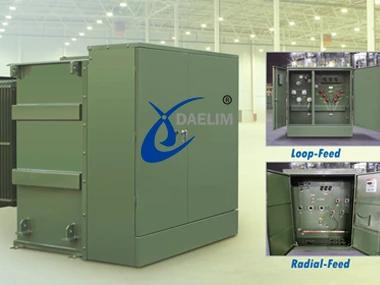

A Guide to Radial Feed and Loop Feed Transformers
