1750 kVA Radial Feed Pad Mounted Transformer


  • Primary Voltage Ratings: 13.8 kV
  • Secondary Voltage Ratings: 480Y/277
  • H.V. TAP RANGE: ±2*2.5%
  • CONNECTION TYPE: Dyn1
  • TYPE: Radial feed pad mounted
  • BIL: 95/30kV
  • Standards: IEEE C57
  • Application: Distribution system for Dominica
  • Power Rating: 1750 kVA

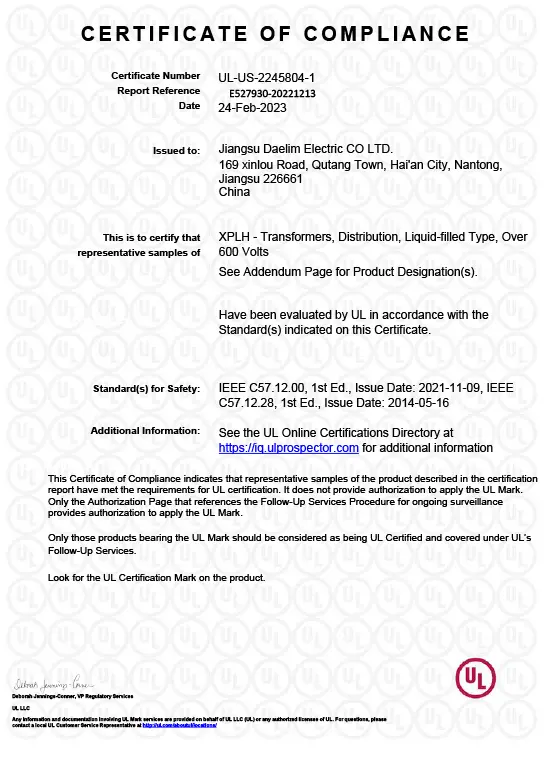

  • Certificate: UL, cUL, CSA, SGS

This is a 1750 kVA pad-mounted transformer designed for the market in the Dominican Republic. It has an input voltage of 13.8 kV and an output voltage of 277V, configured for radial feed. It features a dual fuse protection system, along with an off-load tap changer, oil level gauge, oil temperature indicator, and pressure relief valve. It does not include a load break switch. The transformer's windings are made of copper for both high and low voltage, and it is UL listed.


Quote Now

Type: Radial feed type

Primary voltage: 13800 delta

Secondary voltage: 480Grdy/277

Frequency: 60Hz

Vector group: Dyn1

Impedance: 5.75%

Color: Munsell Green

You may enjoy: Substation Transformer

Contact Daelim Transformer for special requirements

Tank & Accessories: 13200 lbs

Total Oil Weight: 335 Gal

Total Weight: 10140 lbs



Height: 1750mm

Depth: 2304mm

Width: 1730mm

Daelim Transformer is a professional manufacturer of transformers with UL listings and certifications for voltage levels up to 44kV, offering a comprehensive range of UL-certified pad-mounted transformers. Annually, we export Thousands of these transformers to the United States and Canada. Proficient in IEEE/ANSI, CSA, DOE, NEMA, and other standards, our team ensures compliance with diverse regulatory requirements. In addition to UL certification, we also hold CSA, MF, CESI certificates, and third-party SGS test reports. With extensive project experience, we understand that each project has unique requirements. That's why we offer customizable transformers, allowing adjustments to voltage, capacity, connection method, and special design to perfectly suit your needs.  The 1750 kVA pad-mounted transformer can be customized to fit your project requirements. Contact Daelim Transformer today to receive the parameter sheet, drawings, and quotation for the 1750 kVA Pad Mounted transformer.

Learn more about the 1750 kVA Pad Mounted Transformer for the Dominica Market

1750 kVA Pad Mounted Transformer Photoes

Radial Feed Config

Radial Feed Config

1750 kVA Pad Mount Transformer

1750 kVA Pad Mount Transformer

Transforme Package & Shipping

Transforme Package & Shipping
